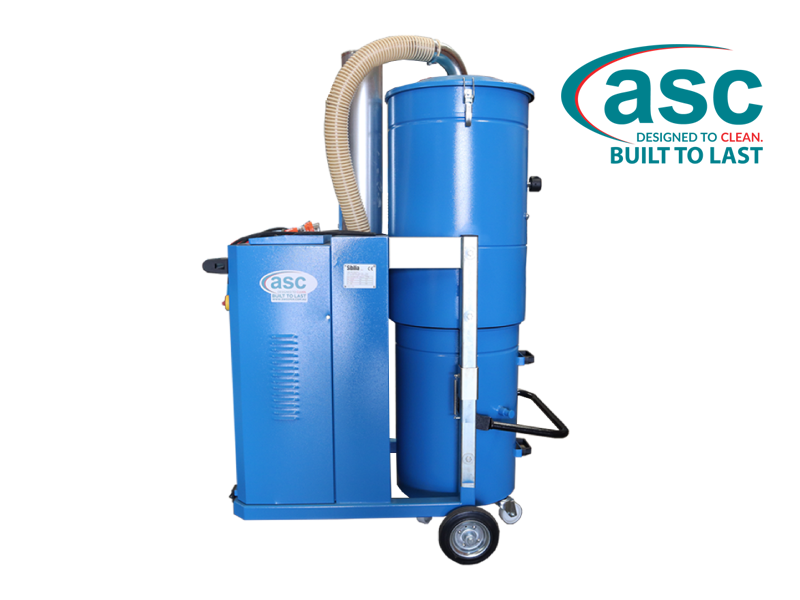

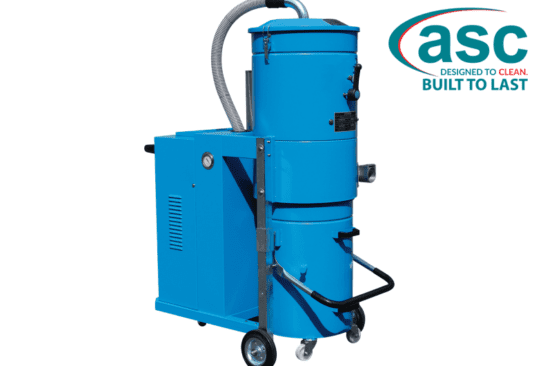

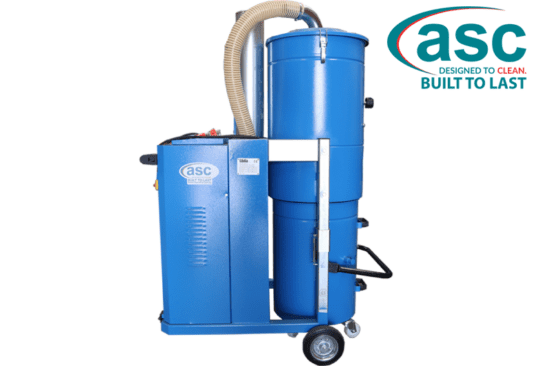

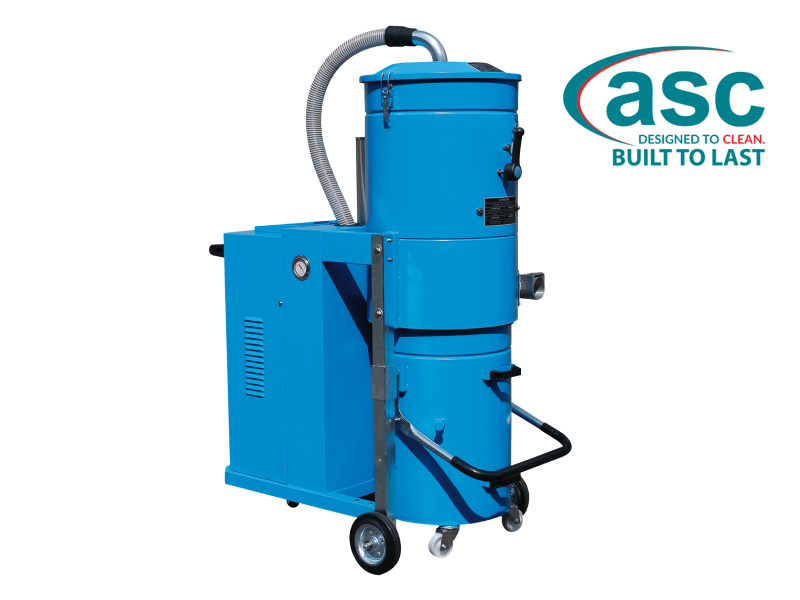

ASC DS3000 Industrial Vacuum

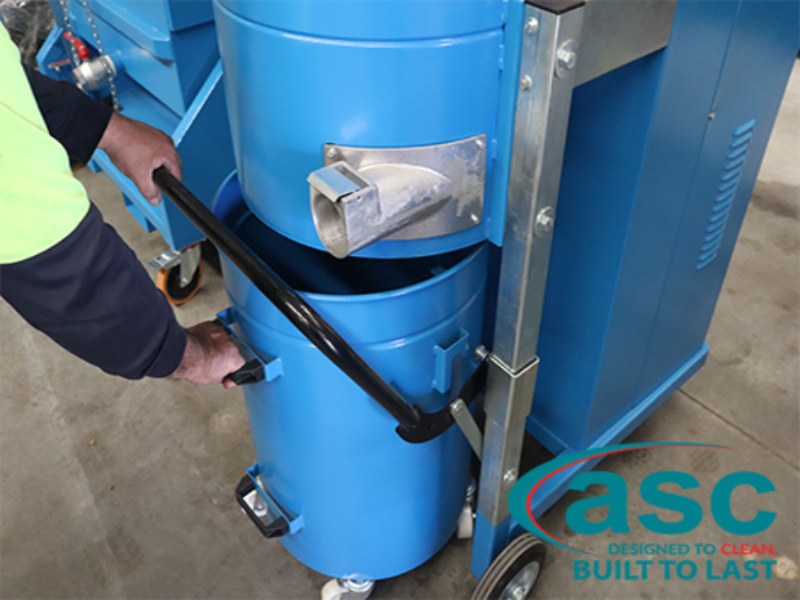

Engineered for continuous-duty operation in manufacturing, mining, cement, and processing industry, the ASC DS3000 is an industrial grade vacuum that effectively collects powdered material and heavy debris, such as cement, plasterboard, and fine dust.
- The DS3000 can be understood by any operator in seconds.
- The ASC DS3000 is fitted with a side channel-turbine, giving maximum dust filtration.

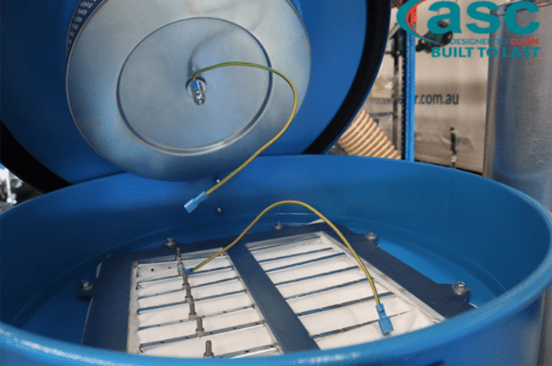

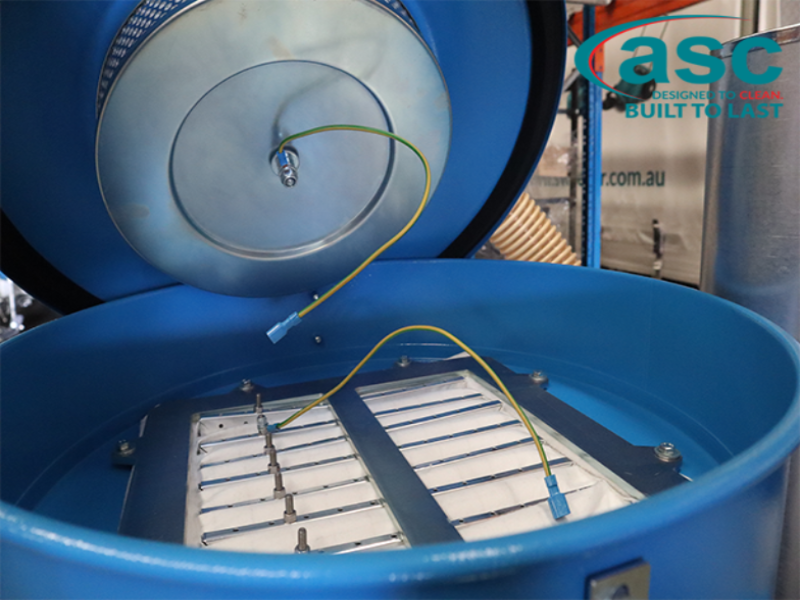

The machine comes with a choice of 3 different filter configures for a range of applications.

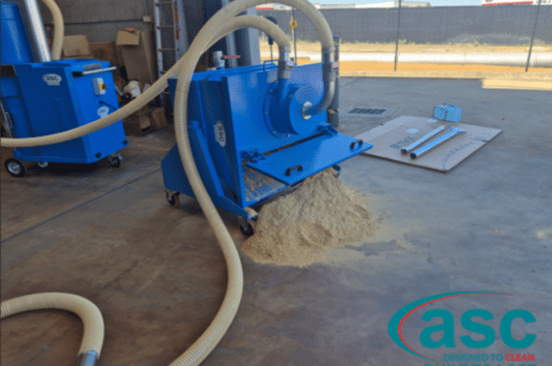

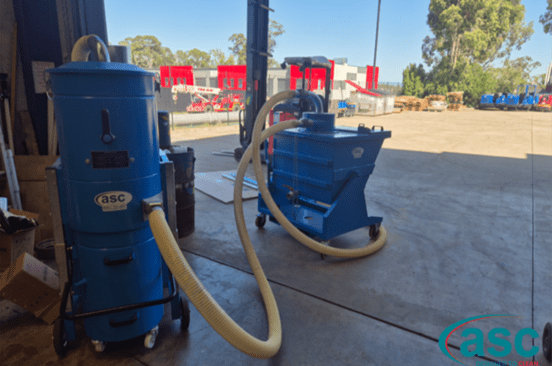

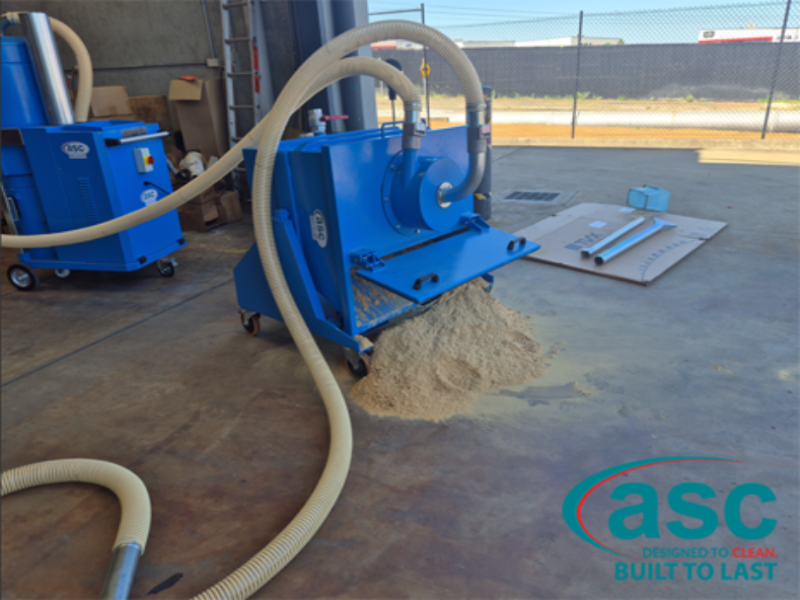

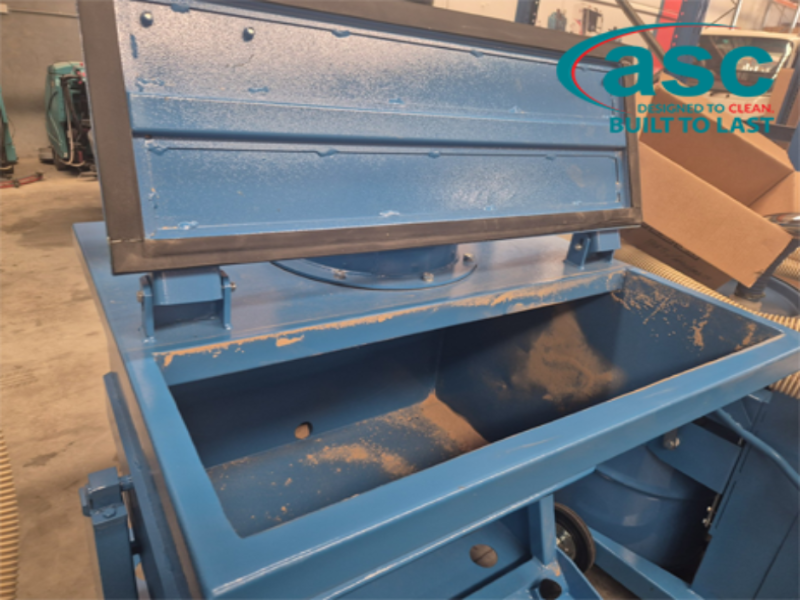

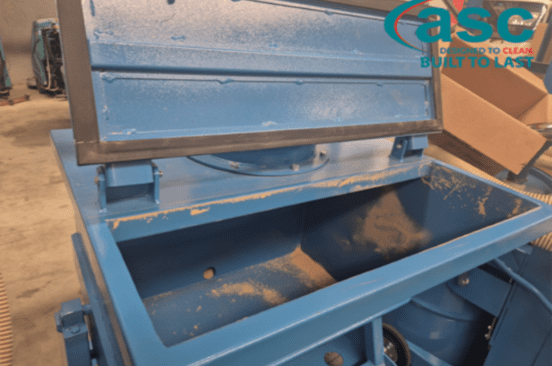

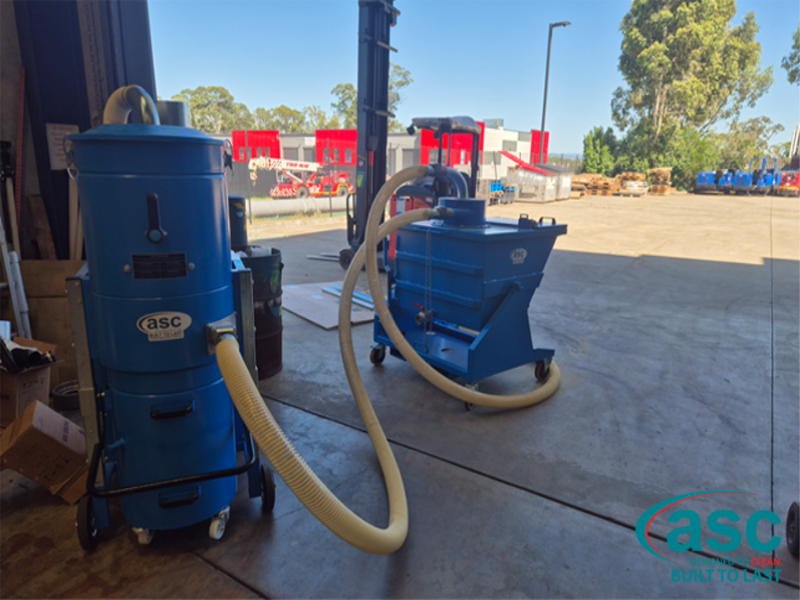

To increase the DS3000’shopper capacity and run time, the machine can be paired with an optional pre-separator unit.
THE ASC DS3000 offers multiple optional filters with 99.993% dust-filtration and asbestos/silca compliance.
Read MoreEngineered for continuous-duty operation in manufacturing, mining, cement, and processing industry, the ASC DS3000 is an industrial grade vacuum that effectively collects powdered material and heavy debris, such as cement, plasterboard, and fine dust.
- The DS3000 can be understood by any operator in seconds.
- The ASC DS3000 is fitted with a side channel-turbine, giving maximum dust filtration.
The machine comes with a choice of 3 different filter configures for a range of applications.
To increase the DS3000’shopper capacity and run time, the machine can be paired with an optional pre-separator unit.
THE ASC DS3000 offers multiple optional filters with 99.993% dust-filtration and asbestos/silca compliance.
THE ASC DS3000
- offers multiple optional
- filters with 99.993% dust-filtration
- and asbestos/silca compliance.
APPLICATIONS
Brickyards, construction, cement plants, processing plants, food industry, smelters, mining and many more.
VERSIONS
ASCDS3000 THREE PHASE POWERED
ASCDS3000 AIR COMPRESSOR POWDERED
Read Less
Features & Equipment
THE ASC DS3000 SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | ASC DS3000 | SEPERATOR |
|---|---|---|
| POWER kw | 4-5.5kw | N/A |
| SUCTION ILET mm | 70 | 70 |
| HOSE LENGTH m | 6.6 | 6.6 |
| DIMENSIONS WxLxH | 200x820x1800 | 1200x1265x1435 |
| WEIGHT kg | 200 | 630 |
| MAXIMUM AIR FLOW M3/H | 600-700 | N/A |
| WASTE COMPACITY | 100L | 400L |
| OUTLET (PHASE) | SINGLE/THREE | N/A |
| MAXIMUM VACUUM | 5000 DaPa | 5000 DaPa |
